How a single written brief became a real floor plan with actual measurements for a contemporary Federal estate, and what it took to make the plan actually work, not just look good.
Most "AI home design" you see online is a single pretty picture. A nice-looking room, no plan behind it, no measurements, no way anyone could build it. I do it differently. Every home I design starts with a real floor plan, generated with AI, before a single render exists.

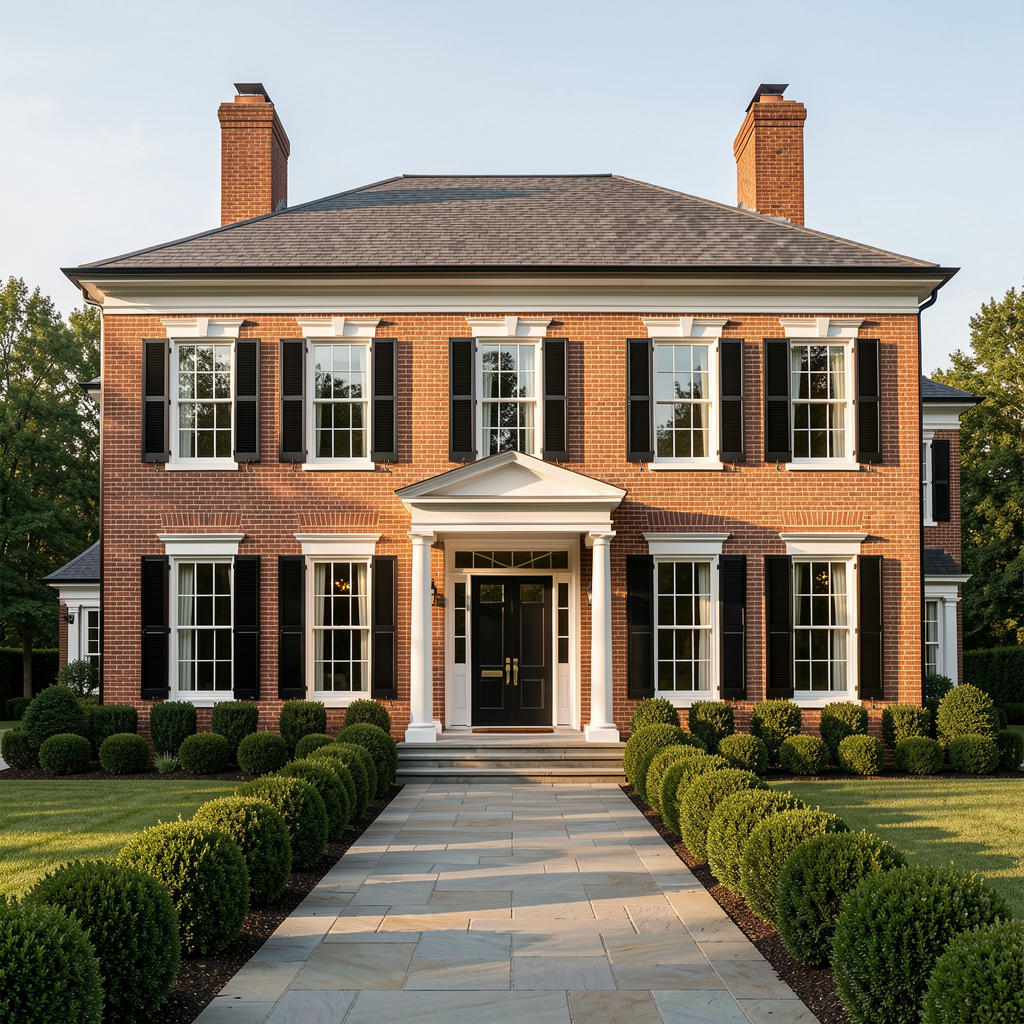

Here's the full story of one: Corliss House, a five-bedroom contemporary Federal estate. It's a good example because it didn't come out perfect on the first try, and how I fixed it is the whole point.
It starts with a sentence
I describe the house in plain language. For Corliss, the brief was roughly: a contemporary Federal Colonial estate, two levels, around 4,000 to 4,500 square feet, strictly symmetrical, with a central entry hall, formal living and dining rooms flanking it, a two-story great room open to above, a large kitchen, five bedrooms, and an upper den overlooking the great room.
That sentence goes into a plan generator I built. Instead of me drawing a layout by hand, it turns the description into a real floor plan with actual measurements, plus a CAD file the kind an architect or builder can open. Change a word in the brief and the plan changes with it.
The first version was wrong, and that's normal
The first plan had the right rooms but the wrong proportions. The primary bedroom came out smaller than two of the secondary bedrooms, which is backwards for an estate. The primary bathroom and closet were tiny. Two of the bedrooms were barely bigger than closets.
So I revised the brief in plain language: make the primary suite the largest on the floor, give it a real spa bathroom and a big walk-in closet, and bring the small bedrooms up to a proper size. Regenerated. The proportions fixed themselves.
This is the part people miss about designing with AI. You don't get it perfect in one shot. You describe, look, adjust, and regenerate, the same way you'd redline a drawing, except you're typing sentences instead of drawing walls.
Then came the hard part: making it actually work
Here's where it got interesting, and where most AI design quietly falls apart. A floor plan can look fine and still be broken. Rooms that don't connect. Bedrooms with no door. Walls that don't close. You'd never catch it by glancing at the picture.
On Corliss, I had a version that looked good but had a real problem: part of the house was cut off from the rest. Two bedrooms, their bathrooms, and even the staircase were unreachable from the main hall. On paper it looked like a house. In reality, you couldn't walk from the stairs to half the bedrooms.
I only found it because the plan generator checks for this automatically. Built into it is a validator that traces whether you can actually walk from every room to every other room. It traces a path out from the main hallway and flags any room that path never reaches. That's what caught the cut-off staircase, something the eye would miss.
So I stopped patching the corner and redesigned the circulation properly: real corridors connecting every bedroom to the hall, doors that actually open, a clean path down to the stairs. Then the generator's validator ran again. Every room reachable. Zero problems. That's when the plan was done, not when it looked right, but when it was verified to work.
From plan to finished home
Once the plan was sound, the rest is the fun part. I clean the plan down to just walls, windows, and doors, then render it into photorealistic images: a moody great room, a bold laundry with a statement floor, a dramatic primary bath. Same house, room by room, all from that original sentence.
Why the plan matters
Anyone can generate a pretty room. The reason I start with a real, working floor plan is that it's the difference between a picture and a design. A plan holds the whole home together. It has measurements. It has a CAD file. And because the generator checks its own work, catching unreachable rooms, missing doors, and walls that don't close, it produces plans that actually function, not just ones that look right. That's what makes this a design tool and not just an image generator.
Want to do this yourself?
The plan generator, the render workflow, and complete case studies are all packaged in the Plan-to-Render System, the exact setup I use on every project. If you design homes, sell real estate, or just want to turn your own ideas into real floor plans and finished renders, that's where to start. You don't need to know how to code.
